1414PHE - METAL ENCLOSURE, ELECTRICAL / INDUSTRIAL, STEEL, 152.4 MM, 152 MM, 102 MM, IP54

Product Overview

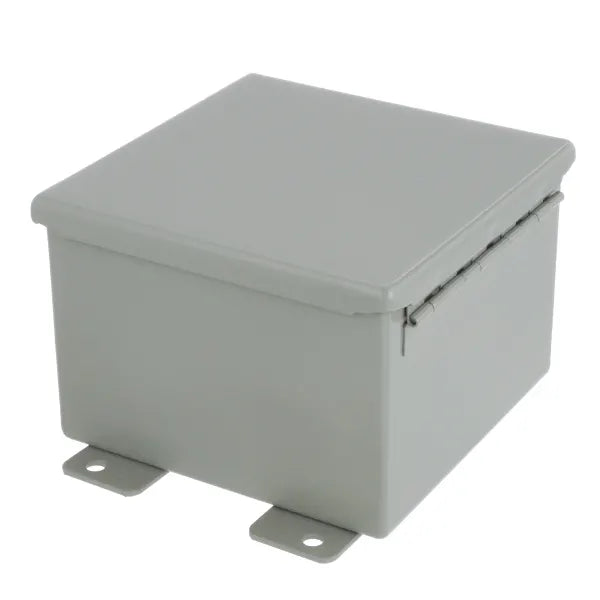

The 1414PHE is a gray (ANSI 61) type-12 Junction Box with inner panel, made of 16 or 14-gauge mild steel with phosphatized and powder coated finish. The 1414 PH series junction box is designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides a degree of protection from falling dirt, dust, oil and water. Continuously hinged cover is secured with stainless steel clamps and plated steel screws. A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
· Smooth, continuously welded seams without knockouts, cutouts or holes
· Covers are formed from 14-gauge steel
· Welded brackets provide for enclosure mounting
· Seamless poured-in place gasket
· Internal threaded weld studs are provided for mounting inner panels
· Removable inner panel is finished in white powder coating

Applications: Industrial, Power Management

Product Information
Enclosure Type: Electrical / Industrial
Enclosure Material: Steel
External Height - Metric: 152.4mm
External Width - Metric: 152mm
External Depth - Metric: 102mm
IP Rating: IP54
Body Color: Grey
NEMA Rating: NEMA 12, 13
External Height - Imperial: 6"
External Width - Imperial: 6"
External Depth - Imperial: 4"
Product Range: 1414PH Series
