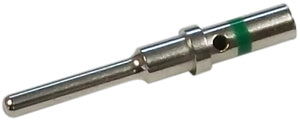

7965-16 - PICO 16-14 AWG SOLID CONTACT PIN

PART NO. 7965-16

Pico
Prix normal: 235.00 USD
Prix réduit: 235.00 USD
Prix unitaire: par

Frais d'expédition calculés lors du passage à la caisse.

Secure & Safe Checkout

Détails des produits

Deutsch DT series connectors offer field proven reliability and rugged quality. The design strengths include multiple pin and socket arrangements and its design flexibility. The DT series offers the harness designer multiple configurations in a simple to use housing and connector series.

KEY SPECIFICATIONS
AMP: 13A
CONTACT SIZE: 16
DEUTSCH NO.: 0460-215-16141
GAUGE: 16-14 AWG
MATERIAL: COPPER ALLOY
PLATING: NICKEL
SERIES: DEUTSCH DT
TEMPERATURE RATING °C: -55 TO 125
TEMPERATURE RATING °F: -67 TO 257
TENSILE STRENGTH: 25 LB
USE WITH: CRIMP TOOL 7903, 7904
