9330162611 - HEAVY DUTY CONNECTOR, 16+PE SIGNAL, UL508, HAN E SERIES, INSERT, 16 CONTACTS, 16B, PLUG, SCREW PIN
PART NO. 9330162611Product Overview

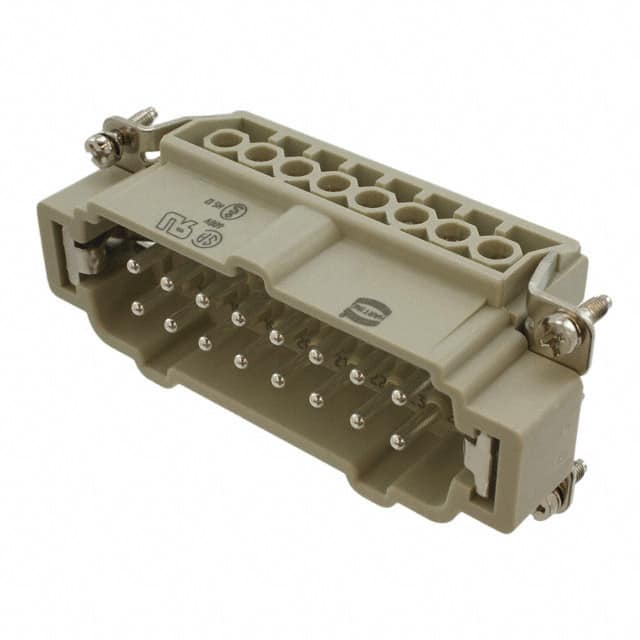

The 09330162611 is a 16-contact light gray male Han 16E Insert with screw terminal, made of polycarbonate. It accepts 18 to 14AWG wire.
· 16A Rated current
· 500V Rated voltage
Applications
Industrial, Power Management
Product Information
Product Range: Han E Series
Heavy Duty Connector Type: Insert
No. of Contacts: 16Contacts
No. of Contacts: 16 Contacts
Rectangular Shell Size: 16B
Gender: Plug (View Associated Connectors)
Heavy Duty Contact Type: Screw Pin
Current Rating: 16A
Wire Size AWG Max: 14AWG
Wire Size AWG Min: 18AWG
Contact Material: Copper Alloy
Contact Plating: Silver Plated Contacts
