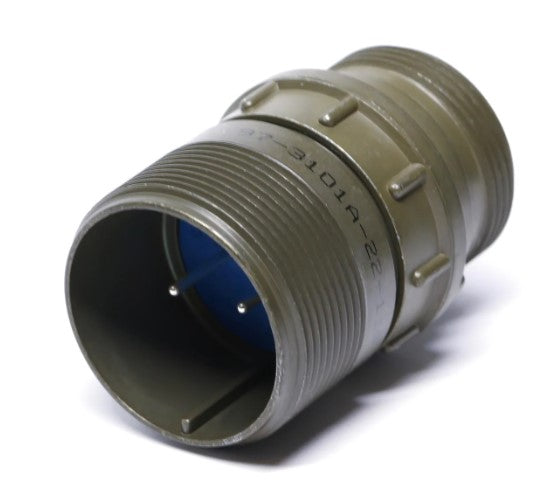

97-3101A-18-1P - CIRCULAR CONNECTOR, 97 SERIES, CABLE MOUNT RECEPTACLE, 10 CONTACTS, SOLDER PIN, THREADED, 18-1

97-3101A-18-1P - CIRCULAR CONNECTOR, 97 SERIES, CABLE MOUNT RECEPTACLE, 10 CONTACTS, SOLDER PIN, THREADED, 18-1

PART NO. 97-3101A-18-1P
Distributeur
Amphenol
Prix normal
21.00 USD
Prix réduit
21.00 USD
Prix unitaire
par
Frais d'expédition calculés lors du passage à la caisse.

Product Overview
The 97-3101A-18-1P is a 10-contact Circular Connector, 97 series, cable receptacle, 18-1 insert arrangement, solid backshell and pin contact. Connector component is fabricated from high grade aluminum alloy, with a conductive cadmium-plated finish and an olive drab chromate after-treatment. Contact is silver plating with pre-tinned solder cups. Inserts for solder style contacts are diallyl-phthalate. Solid shell construction is strong and conserves space. Includes integral polarizing key in front shell. Machined back shell is threaded for standard MS/AN fittings. Can be unscrewed for inspection or soldering.
· Medium to heavy weight cylindrical
· Durable and field-proven design
· Single key/keyway polarization
· Threaded coupling, hard dielectric inserts
· Non-rotating contacts

Applications
Automotive, Robotics, Maintenance & Repair, Commercial, Medical, Automation & Process Control, Sensing & Instrumentation, Defence, Military & Aerospace
Product Information
Product Range: 97 Series
No. of Contacts:10Contacts
Circular Contact Type: Solder Pin
Insert Arrangement:18-1
Connector Body Material: Aluminum Alloy Body
Connector Body Plating: Olive Drab Chromate over Cadmium
Contact Material: Brass, Copper Alloy
Contact Plating: Silver
Insert Rotation: N
Service Class: General Duty
Equivalent Military Specification: MIL-DTL-5015 Series
