GBPC2508 - BRIDGE RECTIFIER, SINGLE PHASE, 800 V, 25 A, MODULE, 4 PINS, 1.1 V

GBPC2508 - BRIDGE RECTIFIER, SINGLE PHASE, 800 V, 25 A, MODULE, 4 PINS, 1.1 V

PART NO. GBPC2508
Distributeur
Solid State
Prix normal
ÉPUISÉ
Prix réduit
4.00 USD
Prix unitaire
par
Frais d'expédition calculés lors du passage à la caisse.
X

REQUEST A QUOTE

Please include your Full Name, Company, Contact Details and Product information you are looking for & a specialist will be in contact with you within 24 hours.

Manufacturer: ONSEMI
Manufacturer Part No: GBPC2508
Newark Part No.: 58K8883

Product Overview

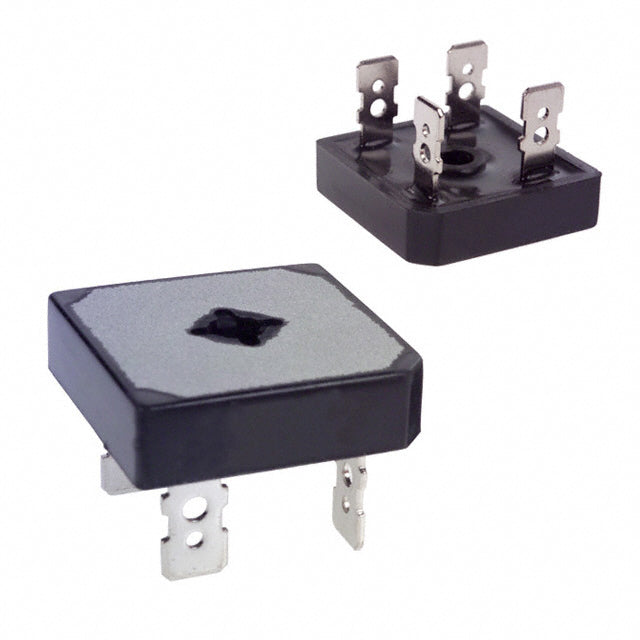

The GBPC2508 is a 4-pin single-phase Bridge Rectifier Diode with integrally moulded heat-sink provided very low thermal resistance for maximum heat dissipation. It has glass passivated junction with nickel finish terminals.
· 300 to 400A Surge overload rating
· Isolated voltage from case to lead over 2500V
· 560V Maximum RMS bridge input voltage
· -55 to 150°C Operating temperature range
Applications
Mains Rectification
Product Information
No. of Phases: Single Phase
Repetitive Peak Reverse Voltage: 800V
Average Forward Current: 25A
Bridge Rectifier Case Style: Module
Forward Voltage Max: 1.1V
No. of Pins: 4Pins
Bridge Rectifier Mounting: Panel Mount
Forward Surge Current: 300A
Operating Temperature Max: 150°C
