KRPA-11DG-24 - POWER RELAY, DPDT, 24 VDC, 10 A, KRPA SERIES, SOCKET, NON LATCHING
PART NO. KRPA-11DG-24- TE Connectivity
- Prix normal
- 64.00 USD
- Prix réduit
- 64.00 USD
- Prix unitaire
- par
Translation missing: fr.products.product.pickup_availability.unavailable
Secure & Safe Checkout

Manufacturer:
POTTER&BRUMFIELD - TE CONNECTIVITY
Manufacturer Part No:
KRPA-11DG-24
Newark Part No.:
17M0200
Product Range
KRPA Series
Also Known As:
4-1393104-5
Product Overview

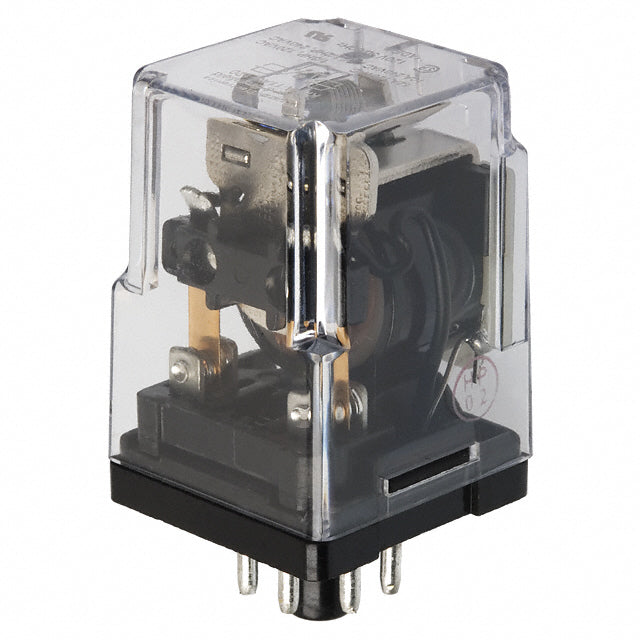

The KRPA-11DG-24 is a 2-pole panel plug-in Power Relay with octal-style plug, 10A contact current rating, 472Ω coil resistance, 24VDC coil voltage and silver cadmium oxide contacts.
· DPDT contact configuration
· Octal type termination for quick installation
· Socket mounting
· Monostable DC coil magnetic system
· Class B UL coil insulation
Applications
Industrial, Defence, Military & Aerospace
Product Information
Contact Configuration: DPDT
Coil Voltage: 24VDC
Contact Current: 10A
Product Range: KRPA Series
Coil Type: Non Latching
Contact Voltage VAC: 240VAC
Relay Terminals: Plug In
Relay Type: Power - General Purpose
Contact Material: Silver Cadmium Oxide
Coil Resistance: 472ohm
Approvals & Standards: CSA, UL
