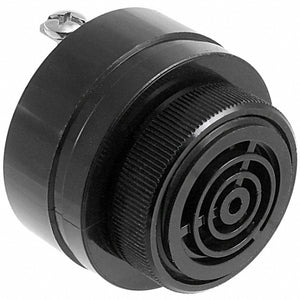

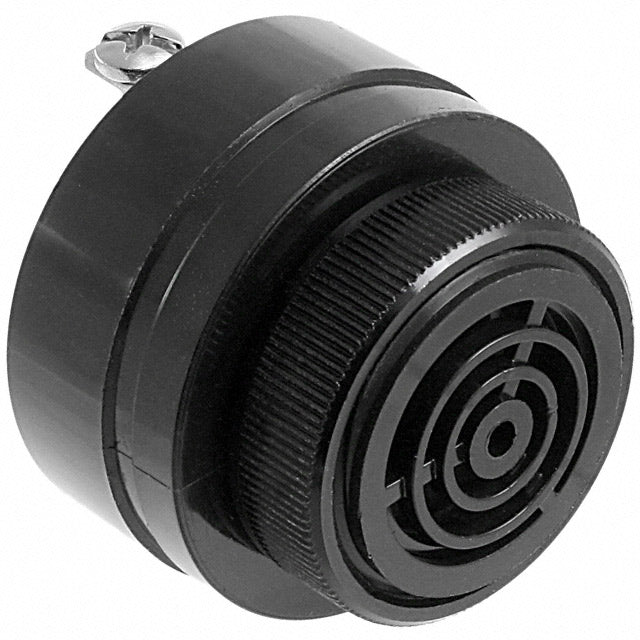

SC628MN - TRANSDUCER, PIEZO, ALARM, CONTINUOUS, 6 V, 28 V, 16 MA, 90 DBA

Manufacturer: MALLORY
Manufacturer Part No: SC628MN
Newark Part No.: 89F276

Product Overview
The SC628MN is a Piezo Transducer with tin-plated brass terminals. Piezoelectric electronic audible alarms work by converting the user input voltage to an appropriate oscillating signal that is applied to a sounder element that is mounted in housing. The piezoelectric sounder element consists of a metal disc that has a special ceramic material bonded to it that physically bends when voltage is applied to it. By applying a sinusoidal waveform at an appropriate frequency, the transducer will physically deflect in one direction and then in the opposite direction following the shape of the input wave-form. If this oscillation occurs in the audible frequency range (1Hz to 20kHz), then air pressure waves are produced that the human ear interprets as an audible sound. The larger the voltage of the applied wave-form, the larger the amplitude of the air pressure waves resulting in a louder sound level.
· Screw neck panel mount
· Black 6/6 nylon housing
· Loud sound level

Applications: Sensing & Instrumentation, Audio

Product Information:
Transducer Function: Alarm
Tones: Continuous
Supply Voltage Min: 6V
Supply Voltage Max: 28V
Operating Current Max: 16mA
Sound Level SPL: 90dBA
Sound Level Distance: 609.6mm
Resonant Frequency: 2.9kHz
