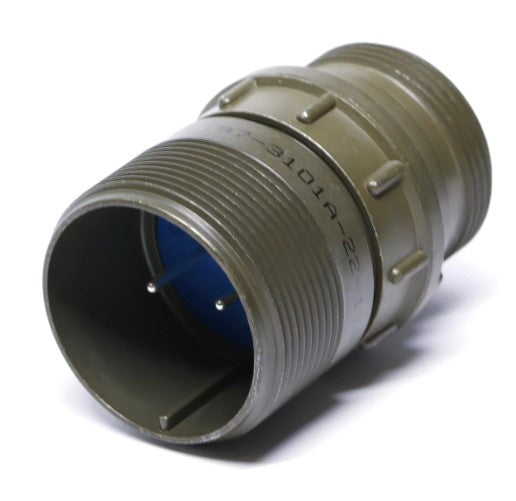

97-3101A-20-27S - CIRCULAR CONNECTOR, 97 SERIES, CABLE MOUNT RECEPTACLE, 14 CONTACTS, SOLDER SOCKET, THREADED, 20-27
PART NO. 97-3101A-20-27S- Amphenol
- Regular price
- 47.55 CAD
- Sale price
- 47.55 CAD
- Unit price
- per
Product Overview
The 97-3101A-20-27S is a 14-position Cable Receptacle with socket type silver-plated copper alloy contacts and 20-27 insert arrangement. Connector component is fabricated from high grade aluminum alloy with a conductive cadmium-plated finish and an olive drab chromate after-treatment. Inserts for solder style contacts are diallyl-phthalate. The solid shell construction is strong and conserves space. Includes integral polarizing key in front shell. Machined back shell is threaded for standard MS/AN fittings. Can be unscrewed for inspection or soldering.
· Medium to heavy weight cylindrical
· Durable and field-proven design
· Threaded coupling, hard dielectric inserts
· Non-rotating contacts
· UL Approved
Applications
Automotive, Robotics, Maintenance & Repair, Commercial, Medical, Defence, Military & Aerospace
Product Information
Product Range: 97 Series
No. of Contacts:14Contacts
Circular Contact Type: Solder Socket
Insert Arrangement: 20-27
Connector Body Material: Aluminum Alloy Body
Connector Body Plating: Olive Drab Chromate over Cadmium
Contact Material: Brass, Copper Alloy
Contact Plating: Silver
Insert Rotation: N
Service Class: General Duty
Equivalent Military Specification: MIL-DTL-5015 Series
