V3-101 - MICROSWITCH, STANDARD, PLUNGER, SPDT, SCREW, 11 A, 250 VDC

V3-101 - MICROSWITCH, STANDARD, PLUNGER, SPDT, SCREW, 11 A, 250 VDC

PART NO. V3-101
Vendor
Honeywell
Regular price
10.00 CAD
Sale price
10.00 CAD
Unit price
per
Shipping calculated at checkout.

Manufacturer: HONEYWELL
Manufacturer Part No: V3-101
Newark Part No.: 23F4069
Product Range: V3 Series

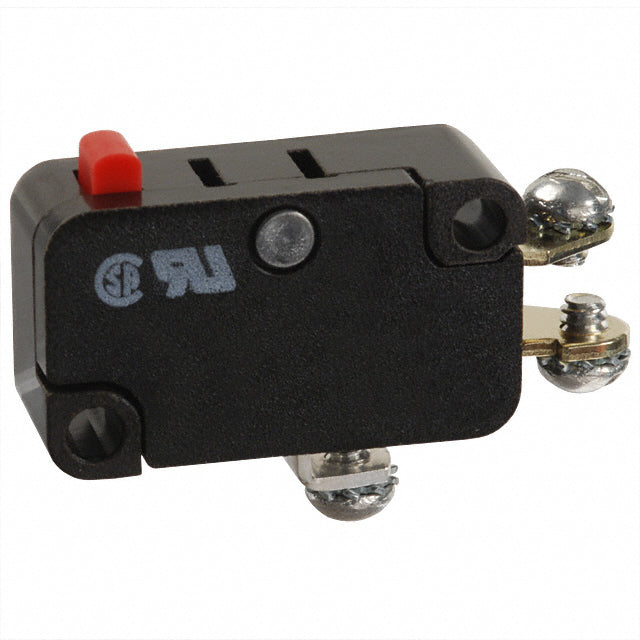

The V3-101 is a single-pole double-throw (SPDT) cut-a-way Miniature Basic Switch with a plunger actuator and screw terminations. This V3 series switch features high electrical capacity and long life. The size and shape of the switch meets design requirements in all types of applications. This switch is made up of sturdy aluminium rivet holds cover to case, water-resistant phenolic case and plunger, long life beryllium-copper spring.
· Sensitive differential as low as 0.006" maximum
· High temperature construction for use up to 316°C

Applications: Industrial

Microswitch Type: Standard
Microswitch Actuator: Plunger
Contact Configuration: SPDT
Switch Terminals: Screw
Contact Current Max: 11A
Contact Voltage DC Nom: 250VDC
Product Range: V3 Series
Contact Voltage AC Nom: 277VAC
Operating Force Max: 8ozf
