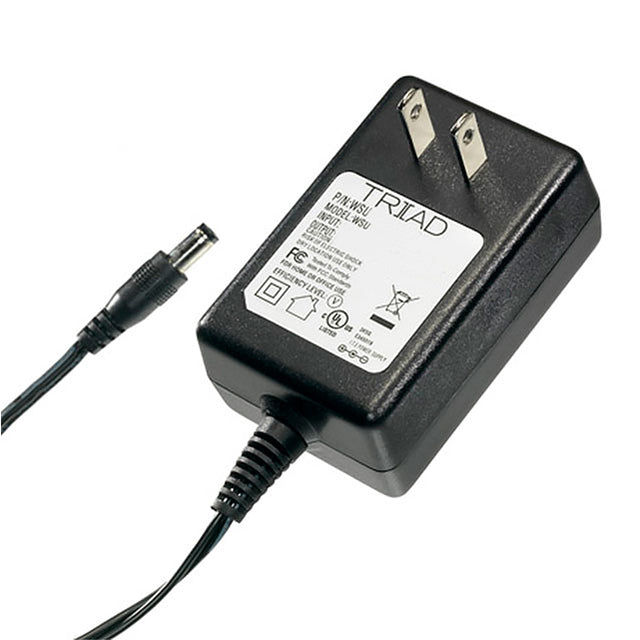

WSU120-0700 - AC/DC POWER SUPPLY, 1 OUTPUT, 8.4 W, 12 V, 700 MA

Manufacturer:
TRIAD MAGNETICS

Manufacturer Part No:
WSU120-0700

Newark Part No.:
83T4336

Product Range
WSU Series

Product Overview
The WSU120-0700 is a 12VDC/8.4W 1-output wall plug-in Power Supply decrease product design time. This plug-in power source eliminates the need for internal power supply cooling devices, thereby reducing the noise level, size and weight of the end product. In addition, these compact power sources keep heat away from sensitive circuits and supply a safer lower output to the end product. Wall plug-in sources are completely enclosed to prevent tampering. They are offered in a wide range of popular voltages, power levels. They output voltage is regulated, which means the output voltage will not vary much with load. Models are available with generous six foot cord lengths and 50 to 60Hz operating frequency.
· Thermoplastic molded enclosure
· -10 to 40°C Operating temperature range
· 24AWG Output cord
· Class-B protection
· Double insulated
· 4kVDC for one minute Dielectric isolation

Applications: Power Management

Product Information:

Power Supply Approvals: ITE
No. of Outputs: 1 Output
Output Power Max: 8.4W
Output Voltage - Output 1: 12V
Output Current - Output 1: 700mA
Output Connector: Barrel Plug Center Positive 2.1mm x 5.5mm x 11mm
Power Supply Output Type: Fixed
Input Voltage AC Min: 100V
Input Voltage AC Max: 240V
Input Voltage VAC: 100V AC to 240V AC
Product Range: WSU Series
Plug Type: US
